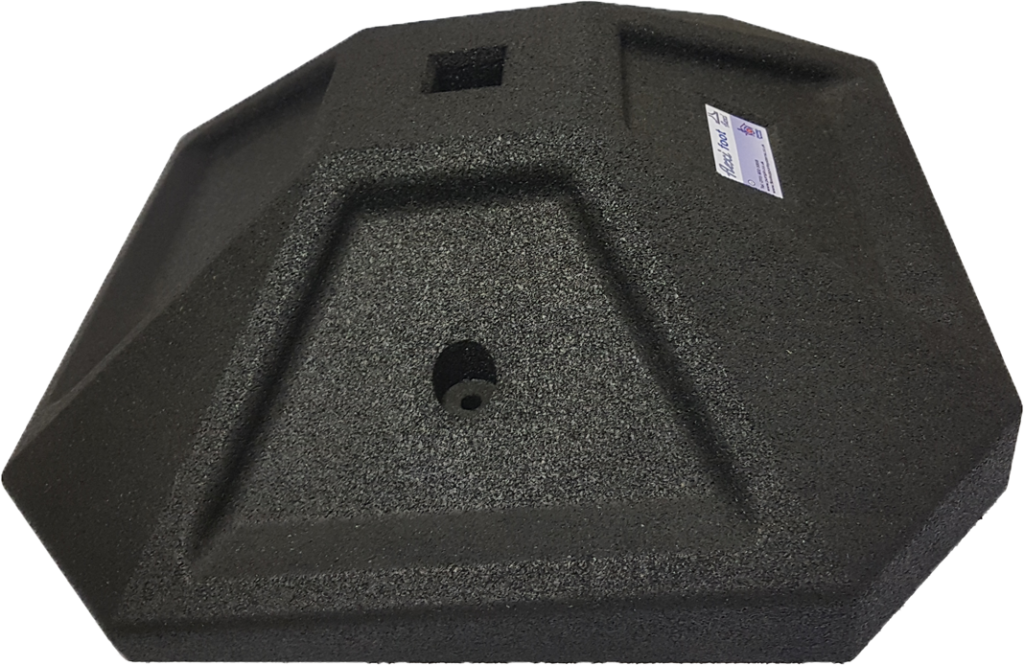

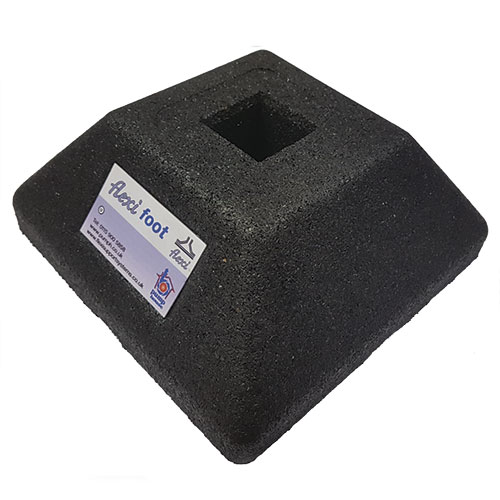

Flexi Foot Variations

Angled Feet to work with more challenging roof falls

To complement our range of Flexi Feet, we have several variations on the standard Flexi Foot with Strut. The Foot only options are available in 200, 300 and 500mm with angle pitch variants of 2.5 and 5 degrees.

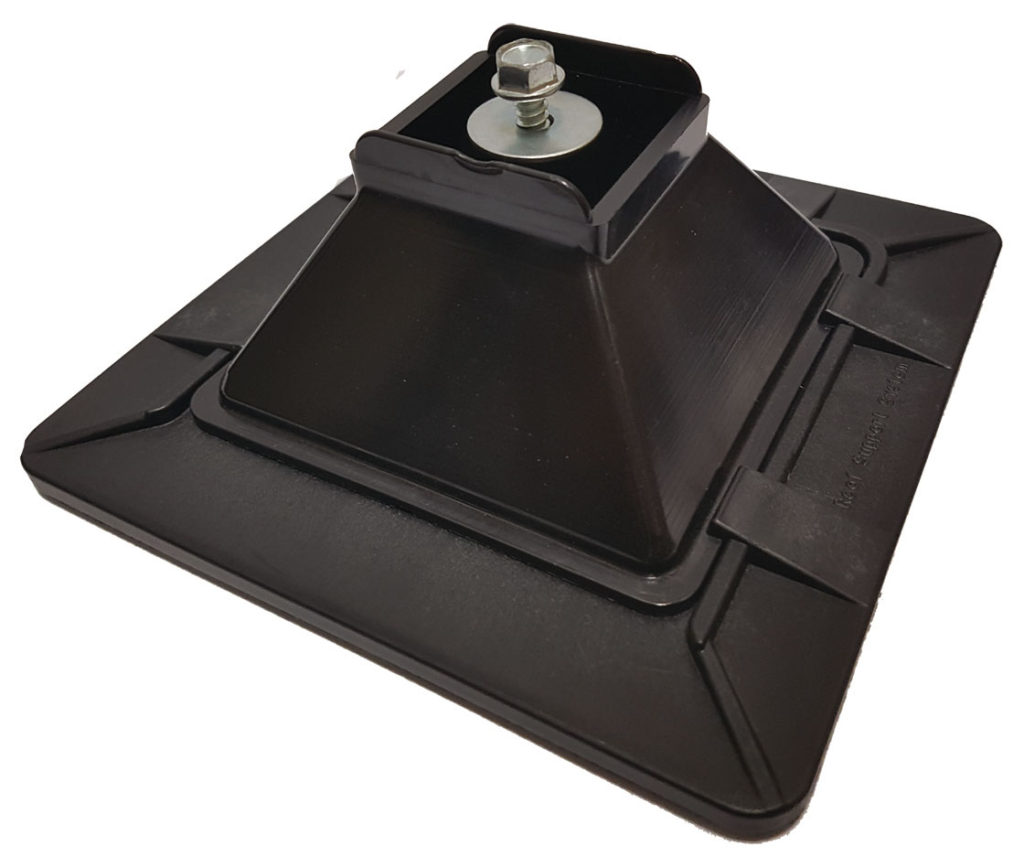

Mini Foot for lightweight services

Lightweight support that may be used with a horizontal or vertical strut to support low-level cable tray and other services.

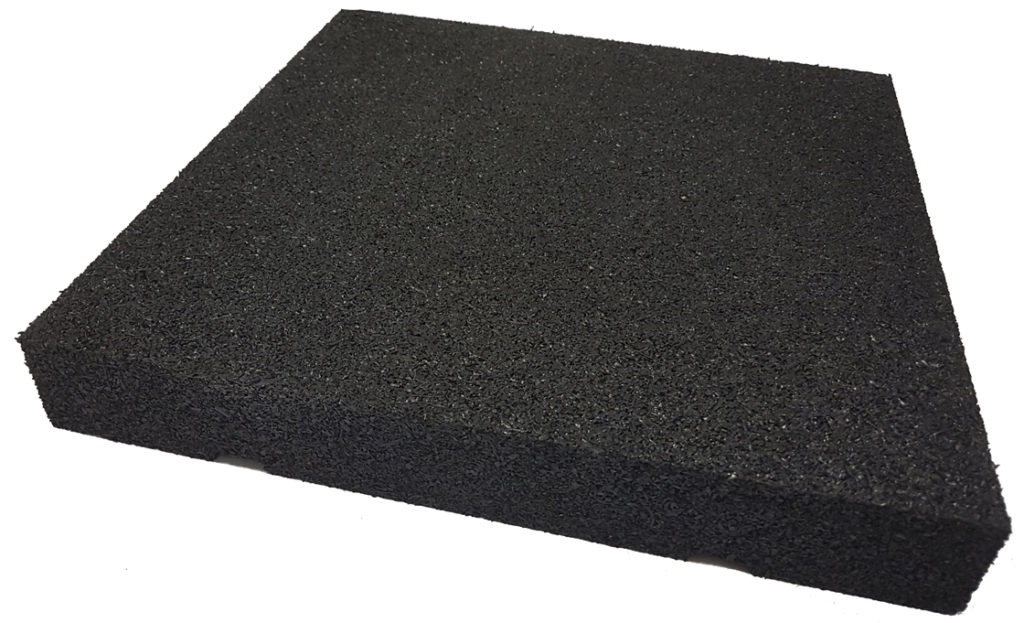

Walkway mats for roof protection

Walkway mats may be combined to define a safe access path while protecting the roof surface.

We are also a member of:

PDF Data Sheets:

Flexi Foot Variations Data Sheet

Part Code Description Length mm Width mm Height mm Safe Working Load Weight
PH-FO-200 Flexi Foot - 200mm for vertical strut /M10 thread 200 200 85 100kg 2.3kg
PH-FO-350 Flexi Foot - 350mm for vertical strut 350 350 110 150kg 5.7kg
PH-FO-350-2 Flexi Foot - 350mm for vertical 82x41mm strut 350 350 110 150kg 5.7kg
PH-FO-350-2.5-S Flexi Foot - 350mm for vertical 2.5 degree 350 350 125 150kg 5.9kg
PH-FO-350-5.0-S Flexi Foot - 350mm for vertical 5.0 degree 350 350 140 150kg 6.1kg
PH-FO-500 Flexi Foot - 500mm for vertical strut 500 500 110 150kg 10.5kg
PH-FO-500-2 Flexi Foot - 500mm for vertical strut 82x41mm strut 500 500 110 150kg 10.5kg
PH-FO-500-2.5 Flexi Foot - 500mm for vertical 2.5 degree 500 500 130 150kg 10.7kg
PH-FO-500-5.0 Flexi Foot - 500mm for vertical 5.0 degree 500 500 150 150kg 10.9kg
F-MF-160 Flexi Mini Foot - 160mm 160 160 60 50kg 230kg
PH-WW-MAT-500 Walkway Mat - 500mm 500 500 45 150kg 14kg
