Custom robust frameworks for the support of complex and heavy building services.
>>> Features & Benefits
Non-penetrative support
Flexible design to accommodate late design changes
Fast and simple installation
Hot dip galvanised frameworks
Fully adjustable to roof falls
Full AutoCAD drawing support
Load management and wind calculations available
Full on-site support and surveying services
>>> Specification

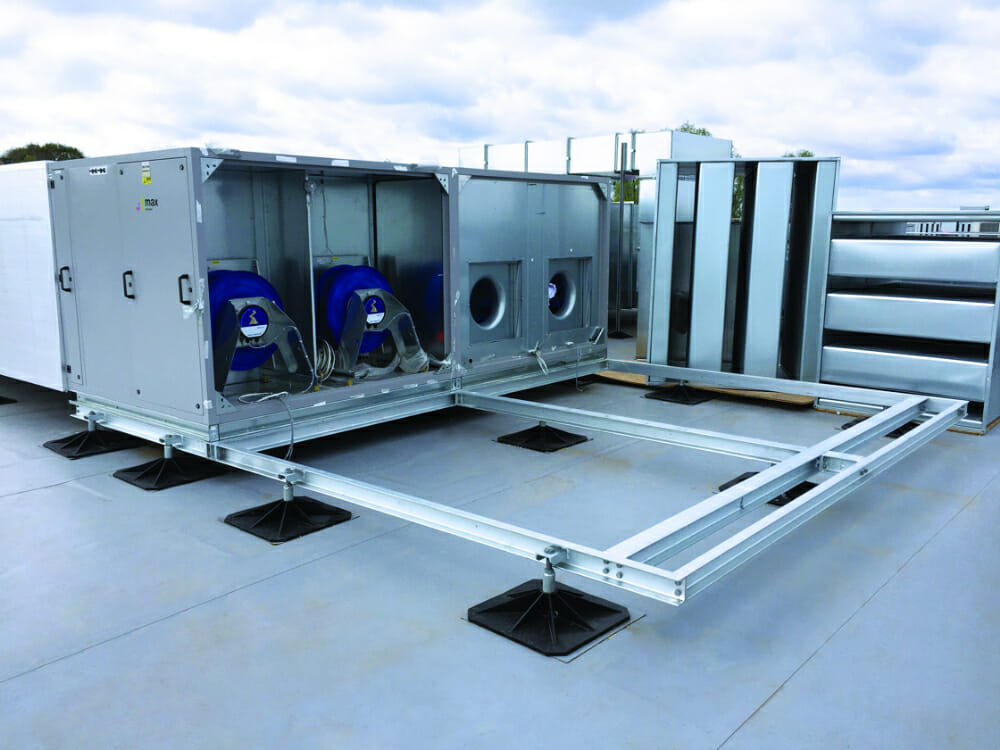

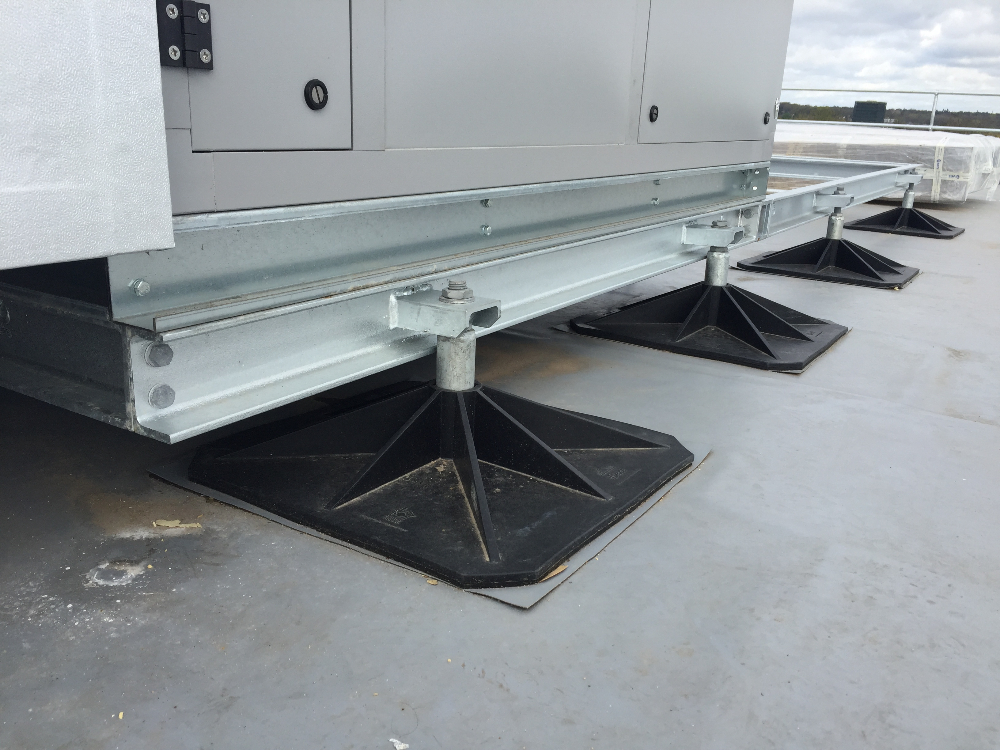

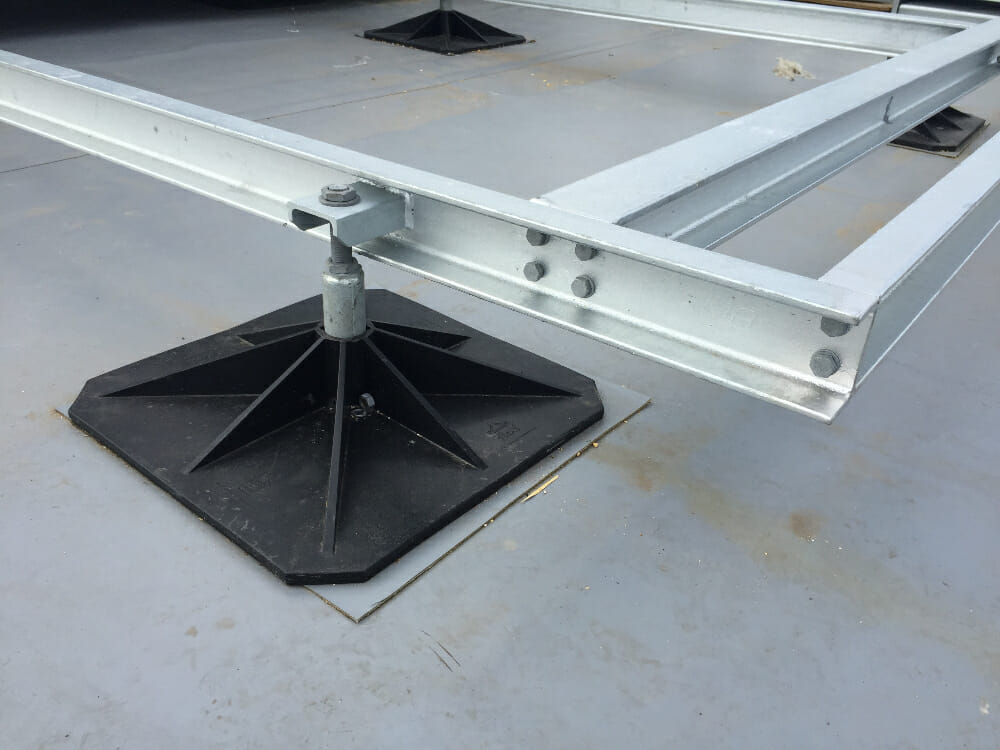

These custom solutions are frequently manufactured from 100 x 50mm parallel flange channel and/or 100 x 100mm HEB (European beam) and supported off fully adjustable leg assemblies utilising our larger 500 x 500mm polypropylene feet incorporating anti-vibration rubber mats adhered to the underside. However, larger steel sections are available dependant on project requirements and the mass or size of the services being supported. All frameworks are finished hot dip galvanised and supplied with all fixings. We will provide the design team with an AutoCAD drawing proposal together with load calculations before manufacture.
We are also a member of:
AHU Requirements | Chiller Requirements | Packaged Plant-room requirements |
---|---|---|
Sectional quantity | AVM quantity & point loads | Sectional quantity |
Sectional dimensions | AVM dimensional locations | Sectional dimensions |
Sectional weight | Total weight (operating mass) | Total weight (operating mass) |
Overall dimensions & weight | Overall dimensions | Overall dimensions |
